Fig. 8
Download original image

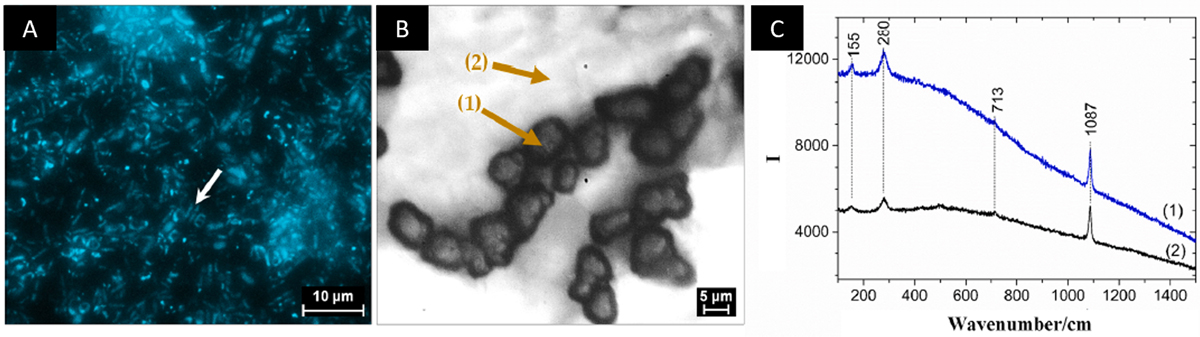

Présence de bactéries biocalcifiantes et de matière organique dans le dépôt calcomagnésien (DC) [167]. (A) Présence de bactéries marquées au DAPI dans le DC formé à −100 µA/cm2 (flèche blanche) observée par microscopie à fluorescence ; (B) Image du DC obtenu à −100 µA/cm2 avec Pseudoalteromonas CD10 en microscopie µ-Raman ; (C) Spectres Raman du DC dans les zones (1) et (2) indiquées par les flèches marron-orangées en B et correspondant à la calcite magnésienne.
Presence of biocalcifying bacteria and organic matter in the calcareous deposit (CD) [167]. (A) Presence of DAPI-labelled bacteria in the CD formed at –100 μA/cm2 (white arrow) observed by fluorescence microscopy; (B) Image of the CD obtained at –100 μA/cm2 with Pseudoalteromonas CD10 by μ-Raman microscopy; (C) Raman spectra of the CD in areas (1) and (2) indicated by the brown-orange arrows in B and corresponding to the magnesian calcite.
