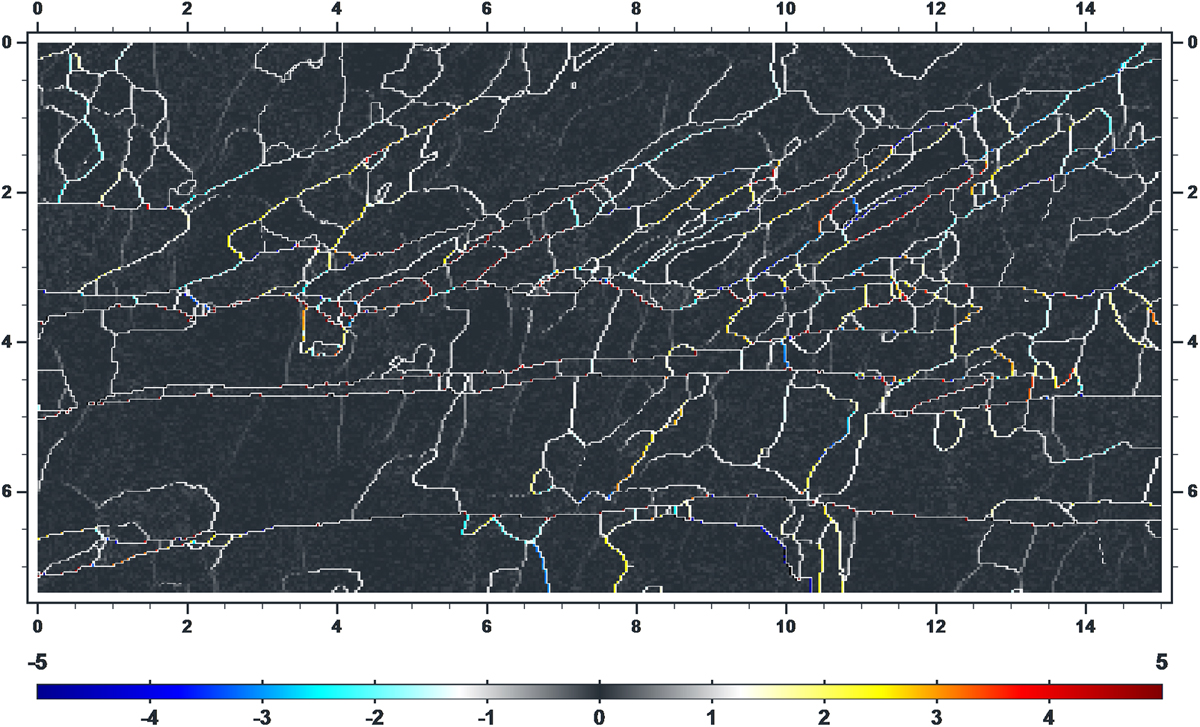

Close-up of the microstructure in Fig. 3e, dislocation density component in, 38 nm step size. Space marks in μm. The Burgers vector is horizontal (x1 direction) and the line vector is normal to the paper (x3 direction). Grain boundary dislocations included. Note that dislocations are mostly seen along grain boundaries.

Agrandissement de la microstructure de la figure 3e. Densité de dislocations α13 en μm−1, pas de 38 nm. Les graduations spatiales sont en μm. Le vecteur de Burgers correspondant à ces dislocations est horizontal (direction x1) et le vecteur de ligne normal à la feuille (direction x3). Les dislocations de joints de grains sont incluses. Noter l’hétérogénéité de la distribution des dislocations, qui apparaissent principalement aux joints de grains.
