Fig. 12


Download original image

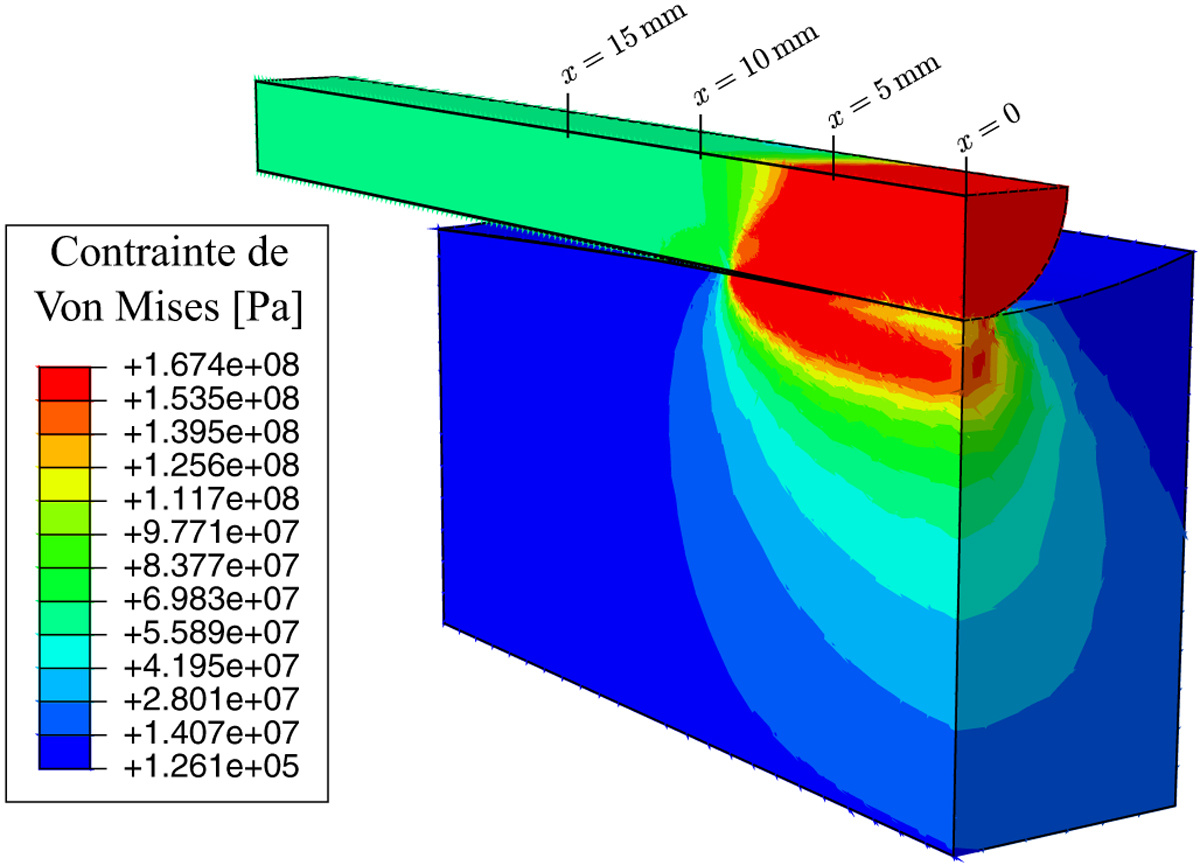

Champ de contrainte de Von Mises pour le dernier pas du cycle 12 de la phase 3.

Von Mises stress field for the last step of cycle 12 of the 3rd phase.
